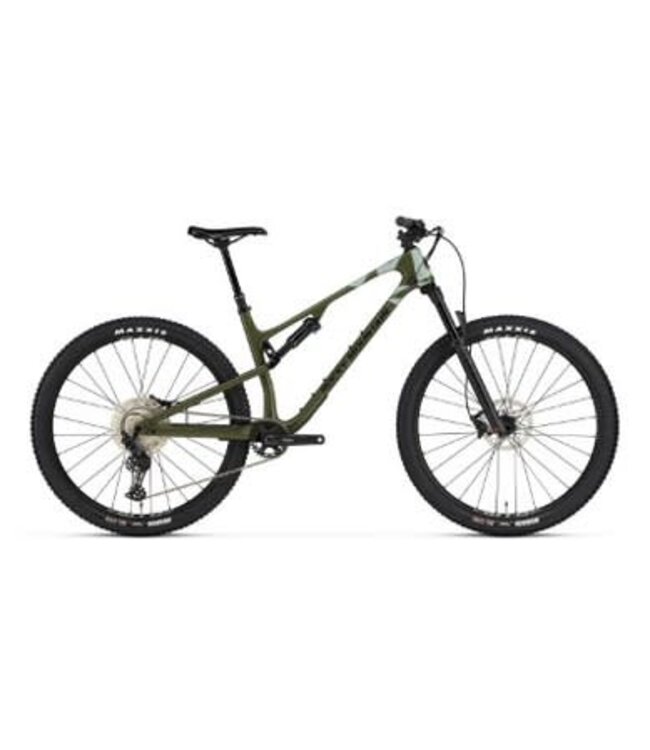

Purpose-built to hit the precise sweet spot between lightweight cross country climbing prowess and technical precision, the Element is the best of both worlds and more Lire plus.
| Frame |
SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | RIDE-4™ Adjustable Geometry + Suspension Rate | 120mm Travel. SMOOTHWALL™ Carbon Rear Triangle
|
|---|---|
| Fork |
Marzocchi Z2 Float EVOL Rail 130mm | 44mm Offset
Front travel: 130mm
|
| Shock |
Fox Float DPS Performance | Sealed Bearing Eyelet | 20x8mm F Hardware | All Sizes = 190x45mm
Rear travel: 120mm
|
| Headset |
FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
|
| Stem |
Rocky Mountain 31.8 XC | 5° Rise | All Sizes = 50m
|
| Handlebar |
Rocky Mountain AM | XS = 760mm | SM - XL = 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
|
| Grips |
Rocky Mountain Lock On Light
|
| Brakes | Shimano MT4100 2 Piston | Resin Pads | F:Shimano RT30 180mm | R:Shimano RT30 180mm |
| Shifters |
Shimano SLX
|
| Rear derailleur |
Shimano SLX
|
| Cranks & chainrings |
Shimano Deore | 32T | 24mm Spindle | 170mm Crank Length
|
| Bottom Bracket |
Shimano SM-BBMT500
|
| Cassette |
Shimano Deore 10-51T 12spd
|
| Chain | Shimano M6100 |
|
Front Hub
|
Shimano MT410 | 15mm Boost
|
| Rear Hub |
Shimano MT410 Boost 148mm
|
| Spokes |
2.0 Stainless
|
| Rims |
WTB ST Light i27 TCS 2.0 Tubeless | 28H | Tubeless Ready - Tape / Valves Incl
|
| Tires |
F: Maxxis Rekon 2.4 WT EXO Tubeless Ready
R: Maxxis Rekon 2.4 WT EXO Tubeless Ready
|
| Seatpost |
Rocky Mountain Toonie Drop Composite 30.9mm | XS - SM = 125mm | MD = 150mm | LG - XL = 170mm
|
| Saddle |
WTB Volt 142
|
| Color |
Green/Blue
|
| App. weight |
N/A
|
