Conçu en parallèle au système de motorisation Dyname 4.0, l’Altitude Powerplay est le vélo électrique idéal pour le trail agressif. Lire plus.

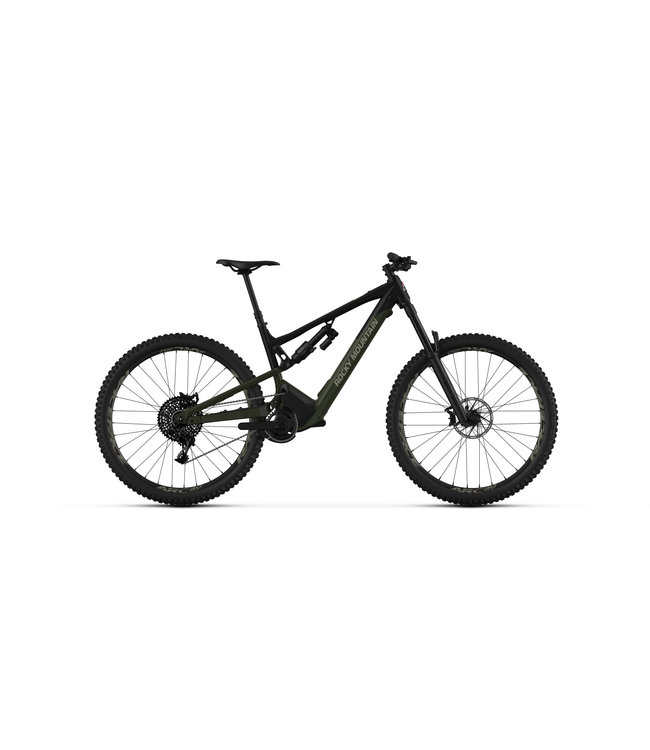

| Product | Rocky Mountain Altitude Powerplay Alloy 30 E-Bike |
|---|---|
| Model Year | 2022 |
| Riding Type | Enduro / All-Mountain, Freeride / Bike Park |
| Rider | Unisex |
| Sizes and Geometry |
SM (Slackest, Steepest), MD (Slackest, Steepest), LG (Slackest, Steepest), XL (Slackest, Steepest) View Geometry
|
| Wheel Size | 29" |
| E-Bike Class | Class 1: Pedal Assist (Pedelecs) |
| Motor | Dyname 4.0 Mountain Bike Drive, 250W nominal power, 880W peak power, 108Nm max torque |
| Battery | Li-Ion, integrated, removable; compatible with second Overtimepack battery (314 Wh) |
| Battery Capacity | 720 Wh |
| Display/Remote | Rocky Mountain Jumbotron, integrated with top tube; Rocky Mountain Micro Remote |
| Modes | Eco, Trail, Ludicrous, and Walk |
| Max Speed with Assist | 20 mph (32 km/h) |
| Frame Material | Aluminum |
| Frame Material Details | FORM alloy; molded seatstay, chainstay, down tube, and shuttle guard protection; integrated fork bumper |
| Rear Travel | 160mm |
| Rear Shock | Marzocchi Bomber CR, size-specific tune, 230mm x 62.5mm |
| Fork | RockShox Domain RC, 44mm offset |
| Fork Travel | 170mm |
| Head Tube Diameter | Tapered, 1.125" top, 1.5" bottom |
| Headset | FSA Orbit No.57E, sealed bearings |
| Handlebar | Rocky Mountain AM, 780mm width, 25mm rise, 9° backsweep, 5° upsweep, 31.8mm clamp diameter |
| Stem | Rocky Mountain AM, 40mm length, 5° rise, 31.8mm bar clamp |
| Grips | Rocky Mountain Light, lock-on |
| Brakes | Shimano M4120, 4-piston, metal pads, Shimano RT64 203mm rotors |
| Brake Levers | Shimano M4120 |
| Drivetrain | 1x |
| Shifters | Shimano Deore, 11-speed |
| Front Derailleur | None |
| Rear Derailleur | Shimano Deore, 11-speed |
| Chainguide | Upper and lower pulley guides with bashguard |
| Cranks | Race Face Ride Cinch, 24mm spindle Length: 165mm (SM/MD), 170mm (LG/XL) |
| Chainrings | Race Face Ride Cinch, 34 tooth |
| Pedals | None |
| Chain | KMC X11-1, 11-speed |
| Cassette | Shimano Deore, 11-speed, 11-51 tooth |
| Rims | WTB ST i30 TCS 2.0, 32 hole, tubeless ready (rim tape and valves included) |
| Hubs | Shimano, MT410 15x110mm Boost front, MT400 12x148mm Boost rear with MICRO SPLINE driver |
| Spokes | Stainless steel, 2.0 |
| Tires | Front: Maxxis Minion DHF, EXO, TR, 29" x 2.5" WT Rear: Maxxis Minion DHR II, EXO, TR, 29" x 2.4" WT |
| Saddle | WTB Volt, 142mm width |
| Seatpost | Rocky Mountain Toonie dropper Drop: 125mm (SM), 150mm (MD), 170mm (LG/XL) |
| Seatpost Diameter | 30.9mm |
| Seatpost Clamp | Single bolt, 34.9mm |
| Rear Dropout / Hub Dimensions | 12x148mm Boost |
| Max. Tire Size | 29" x 2.6" |
| Bottle Cage Mounts | One inside front triangle |
| Colors | Green/Black |
| Warranty | 5 years frame; 3 years electronics; 2 years battery; 1 year paint, decals, frame hardware, drive components, suspension pivots, and bushings |
| Weight | N/A |
| Miscellaneous | • Mid-high pivot Smoothlink rear suspension design • Geometry and suspension rate adjustable via RIDE-4 flip chip at rear shock mount • Chainstay length adjustable via flip chip at rear dropout • Internal cable routing • Motor assist settings customizable via app • BB89.5 press-fit bottom bracket • Overtimepack compatible (extra 314 Wh) • Photos are representation only, showing alternate build |
| Price | $5,749 |
